Description

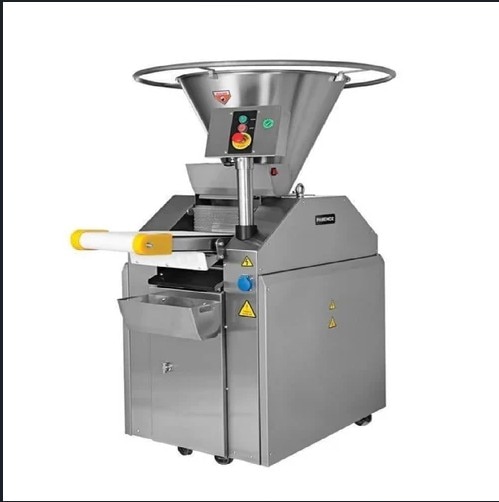

Material Stainless Steel (SS) Hopper Capacity 2000 piece/hr Type Volumetric Usage/Application Commercial / Large Power Source Electric Dough Dividing Range 50-200 100-600 250-1000GM Motor 1.5HP Automation Grade Automatic Machine Name Volumetric Dough Divider Capacity 200-500KG Minimum order quantity: 1 Piece SUITABLE FOR SCALING SOFT AND DELICATE DOUGH, THIS TYPE OF DIVIDER DOES NOT OVER-WORK THE DOUGH. IN FACT, THE SUCTION CUTTING SYSTEM DOES NOT SQUEEZE THE PIECE OF DOUGH INSIDE THE PISTON BUT IT SUCKS IT UP AND THEN EXPELS IT. THE MACHINE IS PROVIDED WITH A CLOSED LUBRICATION CIRCUIT WITH OIL RECOVERY AND FILTERING. THE WEIGHT ADJUSTMENT IS MADE THROUGH AN ELECTRICAL DEVICE WITH DISPLAY LOCATED ON THE CONTROL PANEL OR MANUALLY WITH THE FLYWHEEL LOCATED IN THE BACK OF THE DIVIDER. STAINLESS STEEL HOPPER, TEFLON-COATED ON THE INSIDE (OPTIONAL). ADJUSTABLE AUTOMATIC FLOUR DUSTER. THE MACHINE IS RECOMMENDED FOR USE WITH AUTOMATIC PRODUCTION LINES. CLEANING OPERATIONS ARE NOT NECESSARY ON A DAILY BASIS. V2 MODEL WORKS IN 2 PARALLEL ROWS. ON REQUEST, A PATENTED DOUBLING SYSTEM ENABLES DOUBLE SIZE PIECES TO BE OBTAINED AS WELL AS NORMAL PIECES BY AUTOMATICALLY PLACING THE PIECES ONE BEHIND THE OTHER. LARGER HOPPERS ARE AVAILABLE, ON REQUEST. TECHNICAL SPECIFICATIONS OF PLC CONTROLLED DIVIDER. WEIGHT ADJUSTMENT IS DONE THROUGH THE PLC CONTROLLED TOUCHSCREEN, AC INVERTER IS STANDARD, DOUGH TWISTING SYSTEM IS OPTIONAL,COUNTER, ON / OFF BUTTON FOR FLOUR DUSTER, THE MAIN CHASSIS IS MADE BY STEEL, DIVIDING DRUM IS MADE OF CHROME PLATED STEEL AND THE PISTON CHAMBER IS MADE OF STAINLESS STEEL, ANTICORROSIVE PISTON, 24V CONTROL BOARD, EASY MOTION, CLOSED CIRCUIT LUBRICATION SYSTEM. WHEN STOPPED PISTON ALWAYS STOPS AT DISCHARGE POSITION. PULLEY AND BELT MOTOR SYSTEM. MOTOR POWER TRANSFER IS DONE BY PULLEY AND BELT SYSTEM. STANDARD HOPPER CAPACITY IS 70KG, 140KG HOPPER OPTIONAL. COVERS ARE MADE OF STAINLESS STEEL. CONTROL :MANUAL NUMBER OF PISTON: 1 CAPACITY: 1560-2160 WEIGHT RANGE: 50-200 / 100-600 / 250- 1000 PISTON DIAMETER: 70,110,130 FUNNEL CAPACITY : 70/140 KG VOLTAGE: 380 VAC 50 HZ POWER: 1.5 KW DIMENSIONS: 90 X 1380 X 1580 X 1085 X 600 X 1030 MM WEIGHT: 450 KG
